Tool catalog · Solid carbide HPC end mill – Aluminium15 Variants ↓
Kurth Engineering GmbH

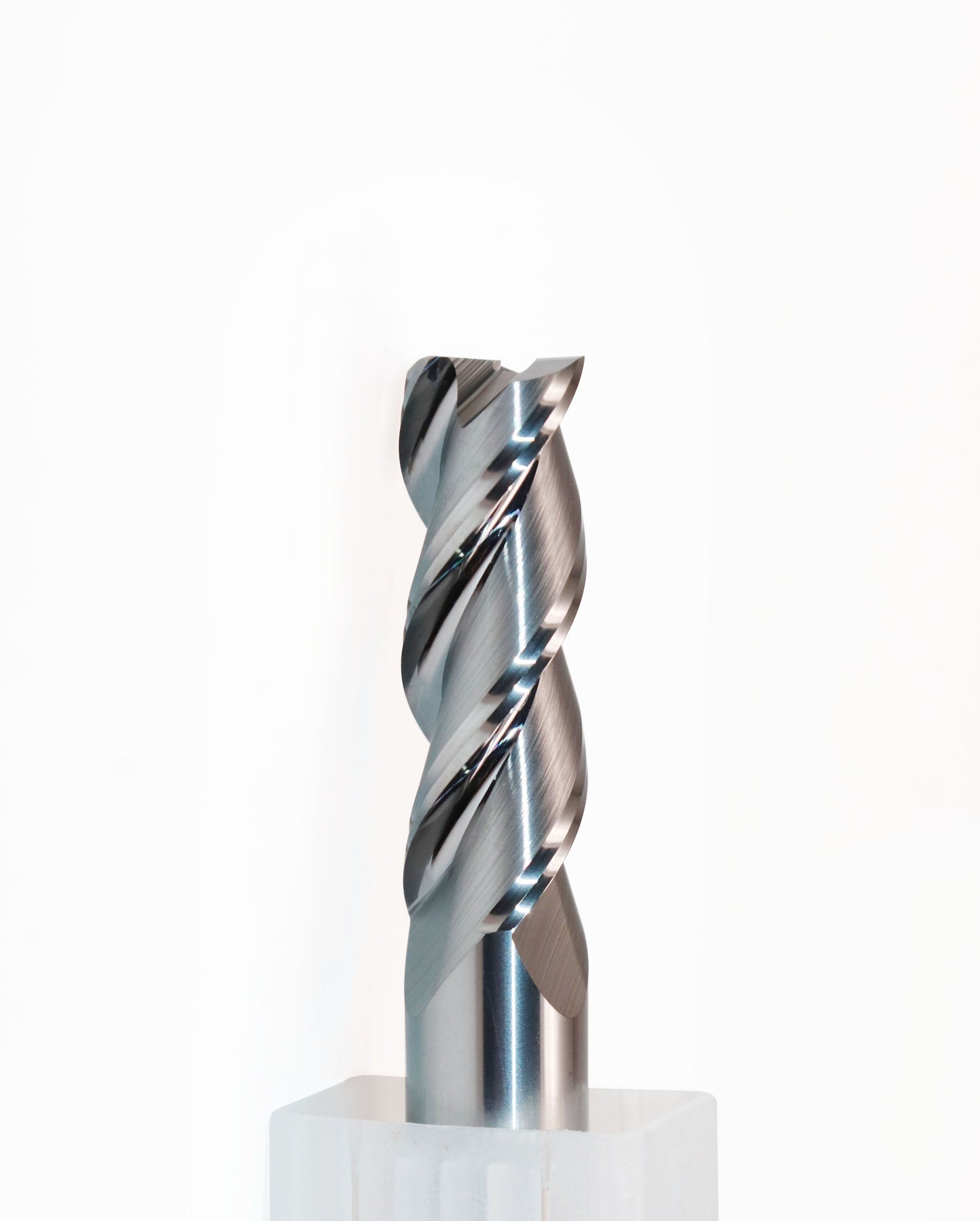

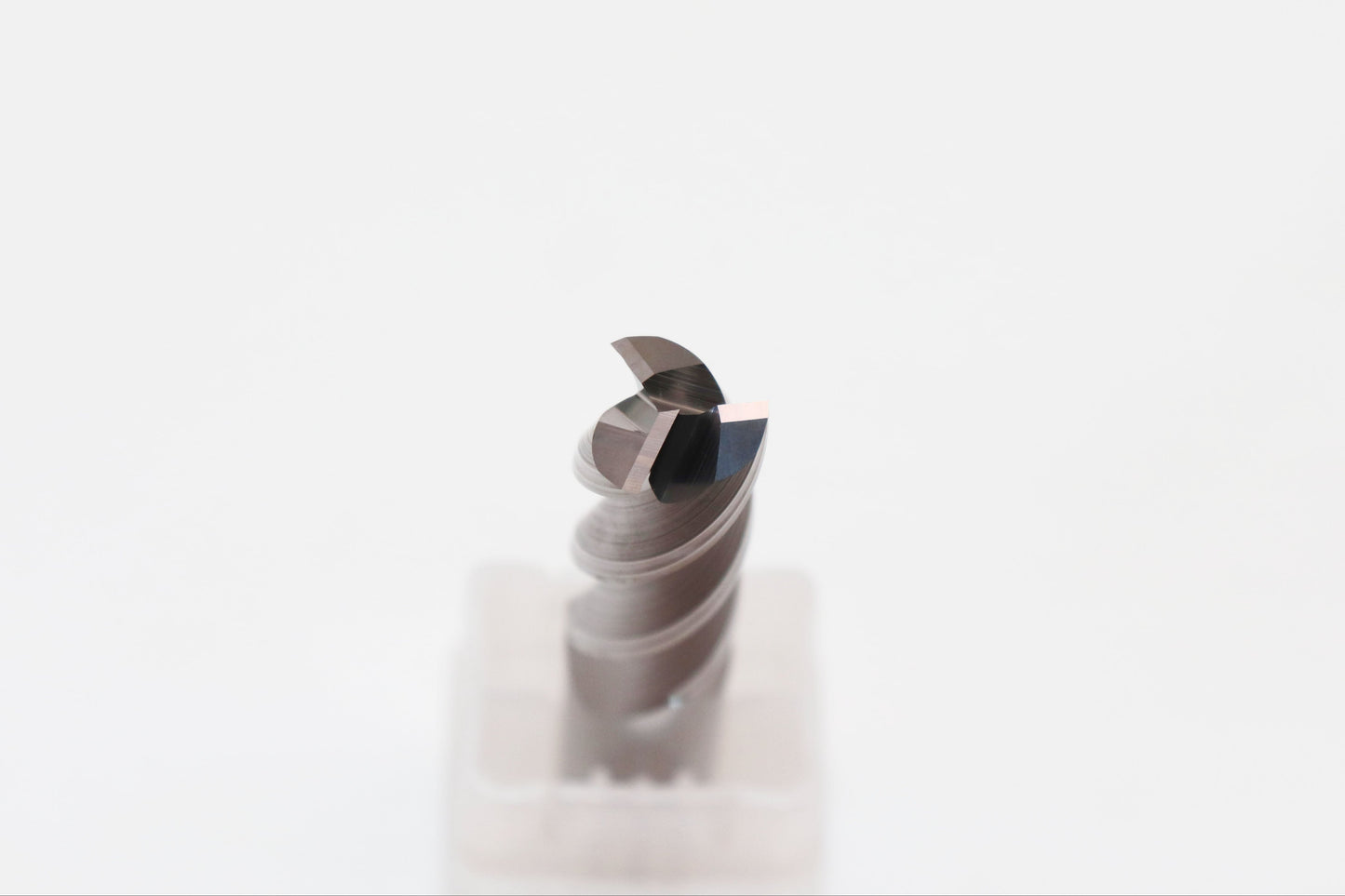

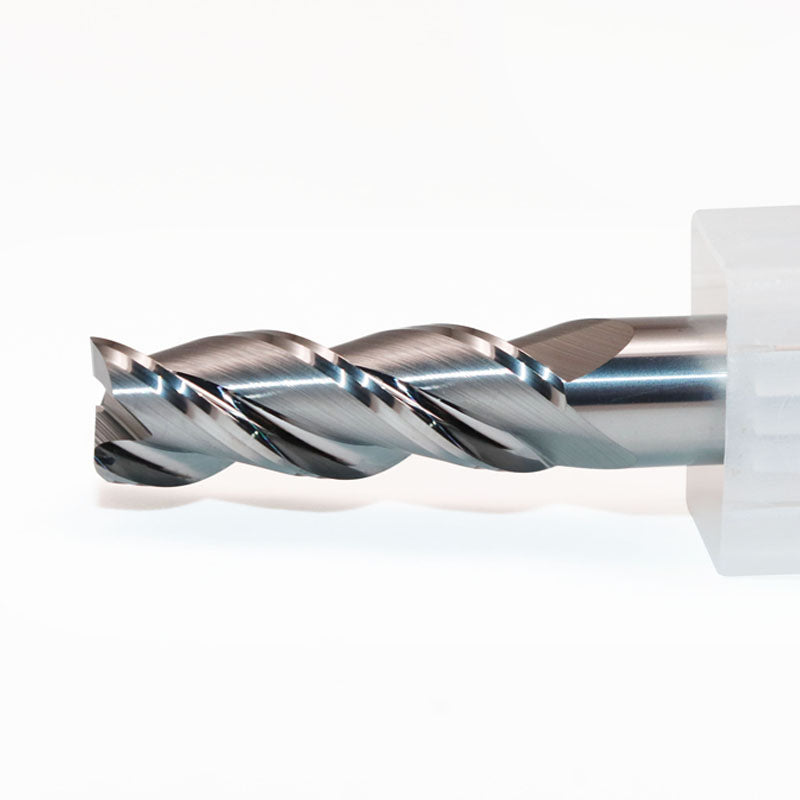

Solid carbide HPC end mill – Aluminium
Solid carbide, uncoated, 34° helix angle, cutting-edge tolerance h8, shank tolerance h6, without protective chamfer, 3 flutes, HPC.
Technical data
- Werkzeugmaterial
- Vollhartmetall (VHM)
- Beschichtung
- Unbeschichtet
- Drallwinkel
- 34°
- Schneidentoleranz
- h8
- Schafttoleranz
- h6
- Schneiden
- 3
- Schutzfase
- Ohne Schutzfase
- Bearbeitung
- HPC
Application
NNon-ferrous metalsISO N
Cutting materialCarbide
EckfräsenHPC-Bearbeitung
Variants

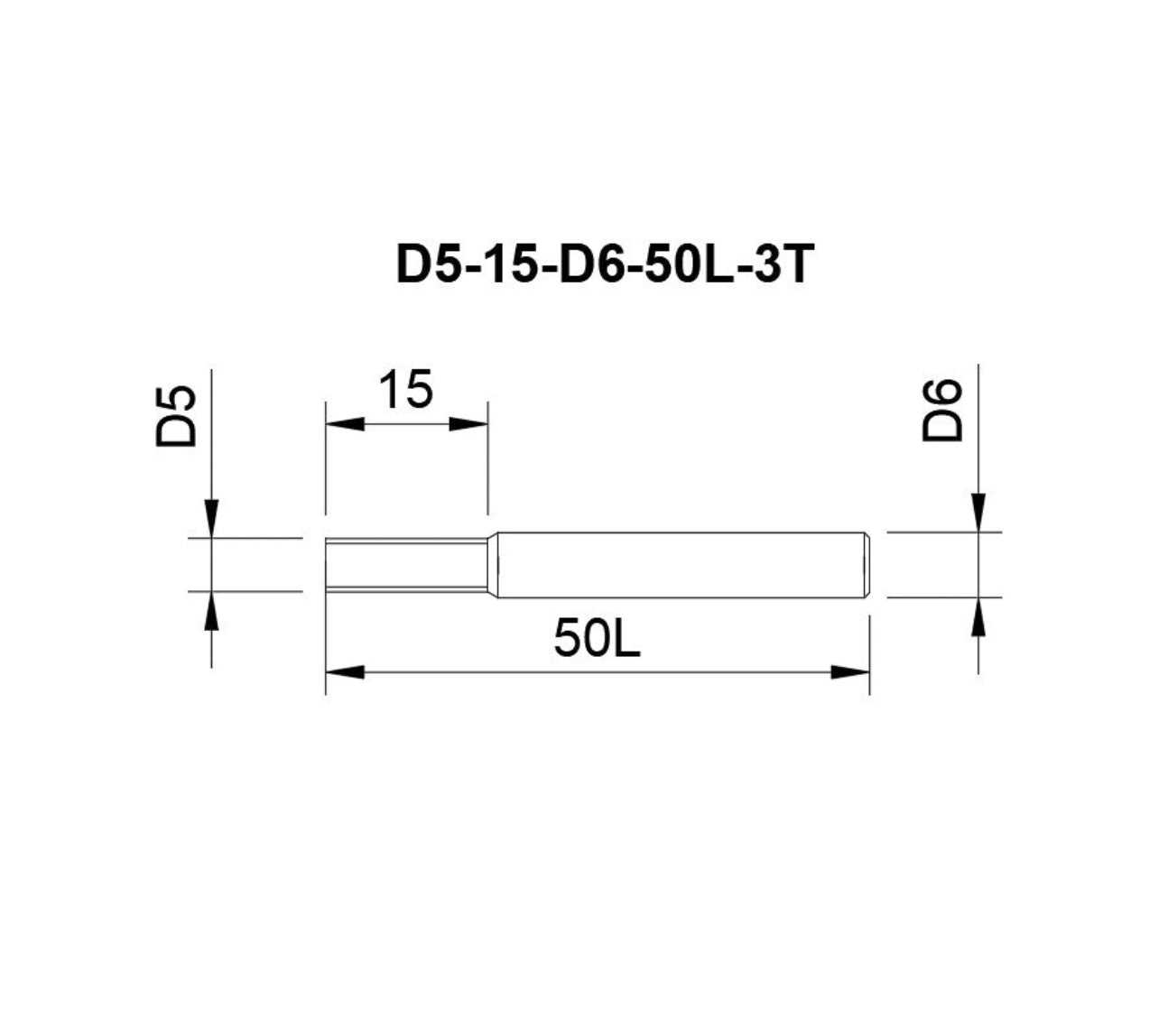

15 items · Prices in CHF| Item | Ø d1 | Cutting length l2 | Shank Ø d2 | L | Z | Availability | Price | Quantity / Order |
|---|---|---|---|---|---|---|---|---|
| Ø1 mmSolid carbide HPC end mill – Aluminium | 1 | 3 | 4 | 50 | 3 | In stock | CHF 14.08 | |
| Ø1.5 mmSolid carbide HPC end mill – Aluminium | 1.5 | 4.5 | 4 | 50 | 3 | In stock | CHF 14.08 | |
| Ø2 mmSolid carbide HPC end mill – Aluminium | 2 | 6 | 4 | 50 | 3 | In stock | CHF 14.08 | |
| Ø2.5 mmSolid carbide HPC end mill – Aluminium | 2.5 | 7.5 | 4 | 50 | 3 | In stock | CHF 14.08 | |
| Ø3 mmSolid carbide HPC end mill – Aluminium | 3 | 9 | 4 | 50 | 3 | In stock | CHF 14.08 | |
| Ø4 mmSolid carbide HPC end mill – Aluminium | 4 | 12 | 4 | 50 | 3 | In stock | CHF 14.08 | |
| Ø5 mmSolid carbide HPC end mill – Aluminium | 5 | 15 | 6 | 50 | 3 | In stock | CHF 20.78 | |
| Ø6 mmSolid carbide HPC end mill – Aluminium | 6 | 18 | 6 | 50 | 3 | In stock | CHF 20.78 | |
| Ø8 mmSolid carbide HPC end mill – Aluminium | 8 | 24 | 8 | 60 | 3 | In stock | CHF 25.38 | |
| Ø10 mmSolid carbide HPC end mill – Aluminium | 10 | 30 | 10 | 75 | 3 | In stock | CHF 27.98 | |
| Ø10 mmSolid carbide HPC end mill – Aluminium | 10 | 40 | 10 | 100 | 3 | In stock | CHF 37.38 | |
| Ø12 mmSolid carbide HPC end mill – Aluminium | 12 | 36 | 12 | 75 | 3 | In stock | CHF 36.02 | |
| Ø12 mmSolid carbide HPC end mill – Aluminium | 12 | 48 | 12 | 100 | 3 | In stock | CHF 45.18 | |
| Ø16 mmSolid carbide HPC end mill – Aluminium | 16 | 48 | 16 | 100 | 3 | In stock | CHF 79.98 | |
| Ø16 mmSolid carbide HPC end mill – Aluminium | 16 | 60 | 16 | 150 | 3 | In stock | CHF 113.38 |
Dimensions in mm unless otherwise stated. Price and availability apply to the selected variant.
