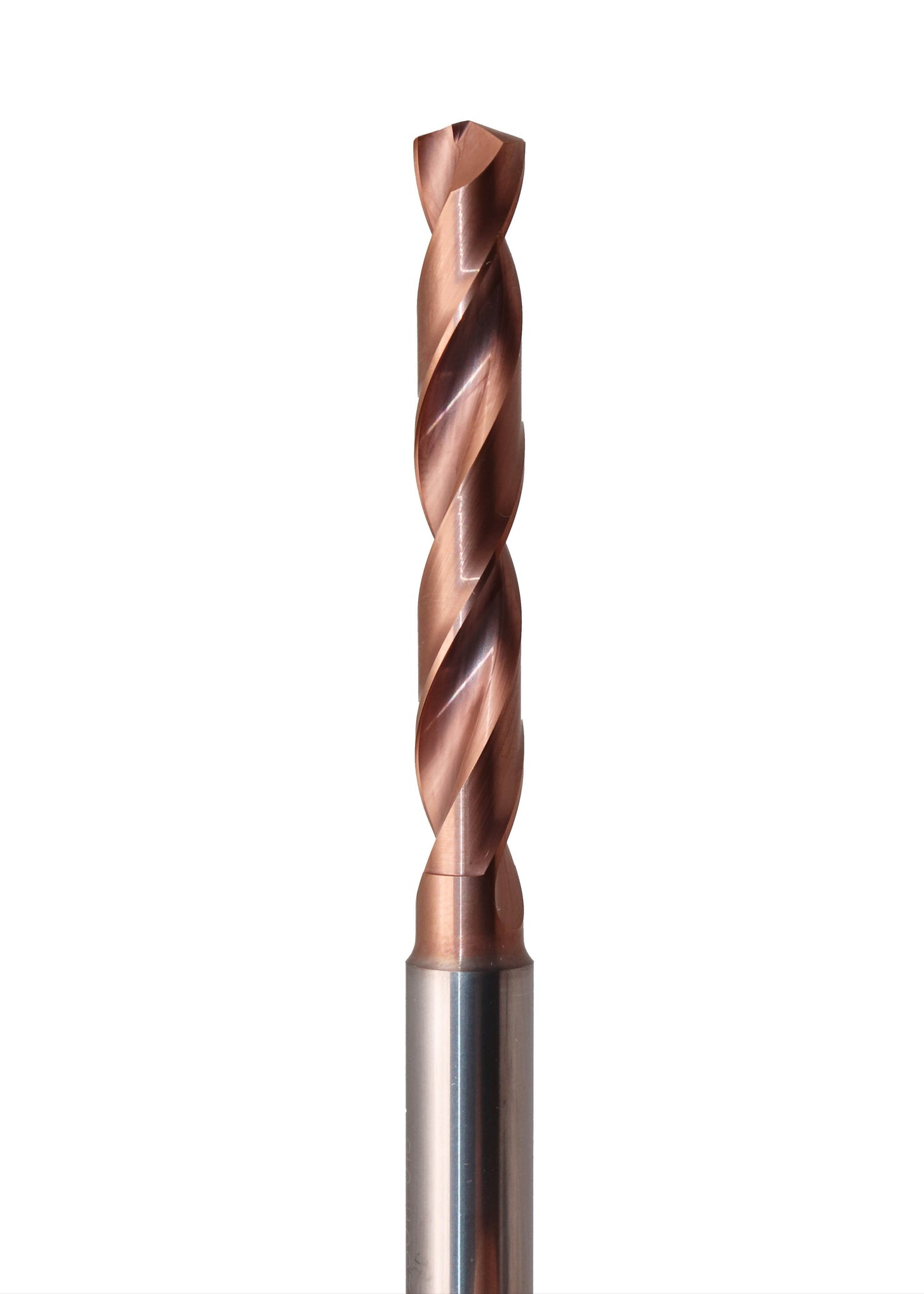

Solid carbide twist drill 5×D – Universal
Solid carbide, HLICA coating, 140° point angle, cutting-edge tolerance m7, DIN 6537L, drilling depth 5×D, HPC.
Technical data
- Werkzeugmaterial
- Vollhartmetall (VHM)
- Beschichtung
- HLICA
- Spitzenwinkel
- 140°
- Schneidentoleranz
- m7
- Norm
- DIN 6537L
- Bohrtiefe
- 5×D
- Bearbeitung
- HPC
Application
PMKNSH
Material groupsISO P · ISO M · ISO K · ISO N · ISO S · ISO H
Cutting materialCarbide
BohrenBohrtiefe bis 5×D
HPC-BearbeitungHohe Vorschübe

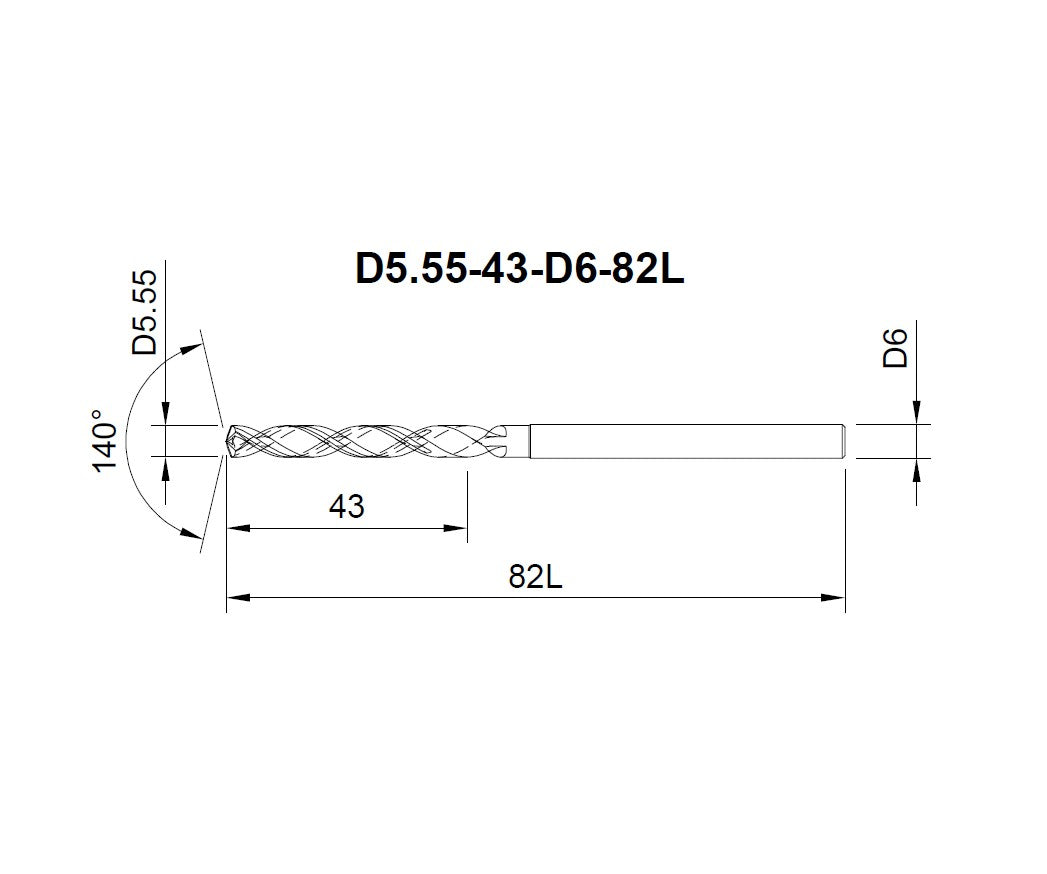

Variants
16 items · Prices in CHF| Item | Ø d1 | l2 | Shank Ø d2 | L | Availability | Price | Quantity / Order |
|---|---|---|---|---|---|---|---|
| Ø3.3 mmSolid carbide twist drill 5×D – Universal | 3.3 | 23 | 6 | 66 | Currently unavailable | CHF 34.78 | |
| Ø3.7 mmSolid carbide twist drill 5×D – Universal | 3.7 | 23 | 6 | 66 | Currently unavailable | CHF 34.78 | |
| Ø4 mmSolid carbide twist drill 5×D – Universal | 4 | 35 | 6 | 74 | Currently unavailable | CHF 36.18 | |
| Ø4.2 mmSolid carbide twist drill 5×D – Universal | 4.2 | 35 | 6 | 74 | Currently unavailable | CHF 36.18 | |
| Ø4.65 mmSolid carbide twist drill 5×D – Universal | 4.65 | 35 | 6 | 74 | Currently unavailable | CHF 36.18 | |
| Ø5 mmSolid carbide twist drill 5×D – Universal | 5 | 43 | 6 | 82 | Currently unavailable | CHF 38.18 | |
| Ø5.5 mmSolid carbide twist drill 5×D – Universal | 5.5 | 43 | 6 | 82 | Currently unavailable | CHF 38.18 | |
| Ø5.55 mmSolid carbide twist drill 5×D – Universal | 5.55 | 43 | 6 | 82 | Currently unavailable | CHF 38.18 | |
| Ø6.6 mmSolid carbide twist drill 5×D – Universal | 6.6 | 43 | 8 | 91 | Currently unavailable | CHF 49.98 | |
| Ø6.8 mmSolid carbide twist drill 5×D – Universal | 6.8 | 43 | 8 | 91 | Currently unavailable | CHF 49.98 | |
| Ø7.4 mmSolid carbide twist drill 5×D – Universal | 7.4 | 43 | 8 | 91 | Currently unavailable | CHF 49.98 | |
| Ø8.5 mmSolid carbide twist drill 5×D – Universal | 8.5 | 49 | 10 | 103 | Currently unavailable | CHF 67.98 | |
| Ø9 mmSolid carbide twist drill 5×D – Universal | 9 | 49 | 10 | 103 | Currently unavailable | CHF 67.98 | |
| Ø9.3 mmSolid carbide twist drill 5×D – Universal | 9.3 | 49 | 10 | 103 | Currently unavailable | CHF 67.98 | |
| Ø10.2 mmSolid carbide twist drill 5×D – Universal | 10.2 | 56 | 12 | 118 | Currently unavailable | CHF 90.78 | |
| Ø11.2 mmSolid carbide twist drill 5×D – Universal | 11.2 | 56 | 12 | 118 | Currently unavailable | CHF 90.78 |
Dimensions in mm unless otherwise stated. Price and availability apply to the selected variant.
